Calibrating inductive voltage dividers – PTB.de

Pulse-driven Josephson voltage standards used for voltage ratio measurements

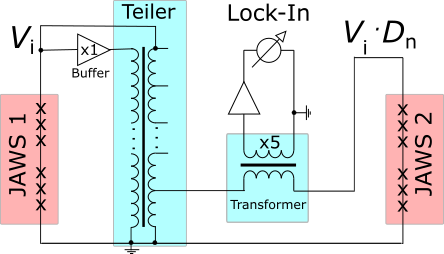

Schematics of the measurement setup for the calibration of the inductive voltage divider (in the figure: ”divider”) with the two JAWS voltage standard systems. The lock-in voltage amplifier together with the transformer (centre of the picture) amplifies the signal and, thus, increases the sensitivity of the measurement method. Credit: PTB.de

PTBnews 3.2018 – PTB is developing a measuring system based on pulse-driven Josephson voltage standards. This system is designed to allow alternating voltages to be measured with great accuracy at frequencies of up to 100 kHz and voltages of more than 100 V. Since the output voltages of Josephson voltage standards are limited to a few volts, it is necessary to use voltage dividers. An inductive voltage divider has now been calibrated for the first time with pulse-driven Josephson voltage standards, and the results have been compared to those obtained using a conventional calibration procedure.
