Stacked Josephson junctions for the pulse-driven quantum voltage standard

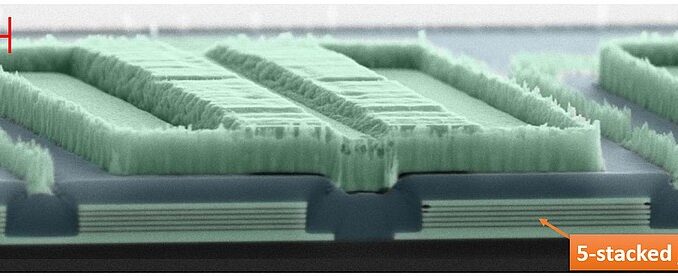

SEM image of a series array with 5 stacked Josephson junctions (cross section view). The height of the junction stacks amounts to approx. 800 nm; all layers taken together are roughly 3 μm in height. Credit: PTB

PTB News 2.2021

Josephson arbitrary waveform synthesizers (JAWS) allow quantized AC voltages to be synthesized with arbitrary and spectrally pure waveforms. At PTB, a pulse-driven Josephson standard for the generation of AC voltages with series arrays has been realized. These arrays are based on stacks of up to five Josephson junctions. This new technology has allowed the integration density of the circuits – and thus their output voltage – to be considerably increased: With up to 30 000 junctions per chip, it is now possible to generate an effective voltage of 0.5 V RMS (0.7 V peak). The yield of the fabrication process has been clearly increased by adapting various parameters.
