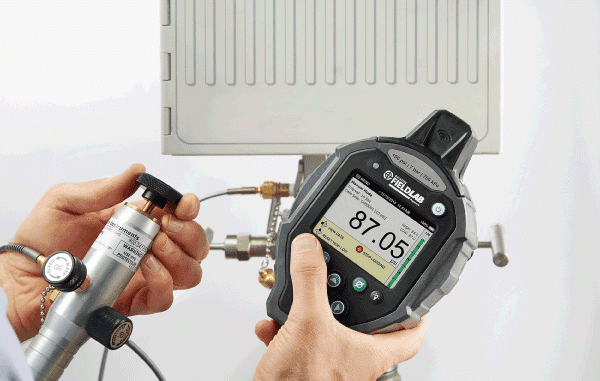

The Ralston Instruments FieldLab is a revolutionary pressure device for testing and calibration. With pressure ranges from 5 psi to 10,000 psi (350 mbar to 700 bar), certified for Class I Division 1 Hazardous locations, measurement uncertainty of 0.1% of reading, temperature compensated, lithium-ion rechargeable battery and a large color TFT display the FieldLab Pressure makes an indispensable addition to any pressure calibration or test kit.
The FieldLab is ideal for pressure data logging. Data logging templates or “Test Modes” can be created with different intervals and durations for different test situations. Data can be collected up to 2 million data points and logging continuously for up to 2 months. Create test templates or “Test Modes” on a PC using the included FieldLab Desktop software and easily load them onto one or more FieldLabs. On-screen prompts on the FieldLab allow the user to select from the loaded test modes and log data according to the template. Easily download datasets onto the PC and export data in CSV format or data and graph in PDF format.
Create a test on a PC using the included FieldLab Desktop software and put it to one or more FieldLabs. On-screen prompts lead the user through a test and tell them right on the FieldLab whether the device under test is out of tolerance. Easily download datasets onto a PC for for creating calibration certificates. They can also produce a set of calibration data with the serial number or other important information on the device under test.
Ralston Instruments has taken the guesswork out of selecting the right equipment by creating kits that include the FieldLab to help users do their job faster and easier. Calibration kits consist of a pressure source, FieldLab, hoses and adapters you need to set up a calibration. Depending on the pressure and application we offer hand pumps, calibration manifolds, volume controllers or nitrogen gas sources along with a FieldLab pressure calibrator. That way users can show up in the field with all the items you need to do their job.
For more information please visit www.ralstoninst.com or email sales(at)ralstoninst.com.
