Setting up ball plates and hole plates – PTB.de

Investigation of deformation due to the dead weight of large standards

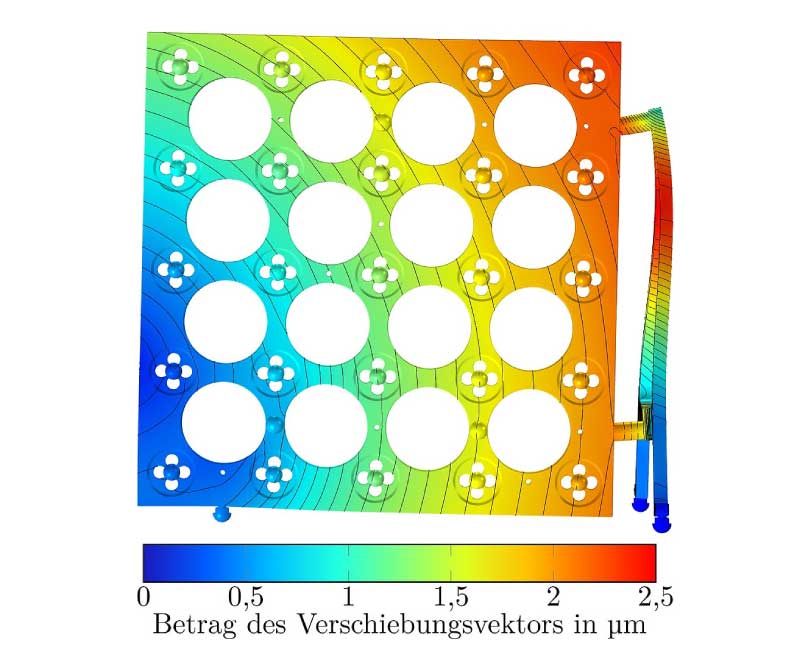

Deformation of a ball plate made of tool steel with a mass of approx. 30 kg and an edge length of 620 mm. Credit: PTB

PTBnews 1.2021

Ball plates and hole plates are measurement standards typically used to ensure the traceability of coordinate measuring machines. To arrange the plates vertically, one single supporting stand is often used that is placed laterally to the standard. Numerical simulations based on the finite-element method that were performed at PTB have shown that such an arrangement no longer fulfills the ever stricter requirements for the calibration of modern, high-precision coordinate measuring machines.
